9-24V Wide Voltage Resistive Touch 7'' IP65 Panel PC With 1000 Nits Sunlight Readable
The unit is equipped with 6-side IP65 protection. The IP65 compliant I/O cover has special M12 waterproof connectors and cables and is available in backward or downward orientation depending on the need of the customer.
which makes it ideal for food, livestock, chemical, mining, petro and factory automation or any other industrial applications.
Features
1. 7'' industrial LCD panel.
2. CPU :Intel® celeron J1900, 2.0GHz, quad core, fanless
3. 2G RAM,32G SSD
4. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
5. Sealed design with heat sink in back case.
6. IP grade is IP65 waterproof and dustproof.
6. Various water-tight IO Cables included.
Customization
Size
CPU: J1900,I3,I5,I7.
RAM:2G ,4G ,8G
Hard Drive Capacity : SSD: 32GB,64GB,128GB,256GB. HDD: 500GB,1TB
Touch: Resistive touch,Capacitive touch
Brightness: 400 nits for indoor,1000 nits sunlight readable for outdoor
Anti glare for outdoor
Specification
| Model:SC07W |
| PC |
| CPU | Intel® celeron J1900, 2.0GHz, quad core, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3, (4G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G,128GB,256GB |
| HDD: 500GB,1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI optional |
| I/O Interface | 3 xCOM RS232, 2 xLAN, 4xUSB, 1xVGA |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel |
| Panel size | 7" |
| Resolution | 1024x600 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits,sunlight readable |
| Response time | 10ms |
| Contrast ratio | 700:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | 4 wire resistive touch |
| Surface Hardness | 3H |
| Luminousness | 90% |
| Touch Interface | USB |
| Touch response time | 2ms |
| Working Life | >35 million times |
| Touch options | (10 point capacitive touch optional) |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | 9-24V wide voltage |
| Power consumption | ≤25W |
| Enclosure |
| Material | Aluminum Alloy front bezel + High strength cold rolled steel back case |
| Color | Black( white, Silver , color can be customized ) |
| VESA mounting | 75×75mm |
| IP-grade | IP65 |
| Operating Environment |
| Temperature Range | operating: -10 to 60°C, storage :-20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Net weight | 3KG |
| Gross weight | 4KG |
| Product Dimension | TBD |
| Packing size | 40×33×15 cm |
| Accessories | Power adapter,waterproof VGA/RS232/LAN/USB cable,touch driver,touch pen |
| Other |
| Mounting (options) | 1) provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor |
| Warranty | 1 year warranty |

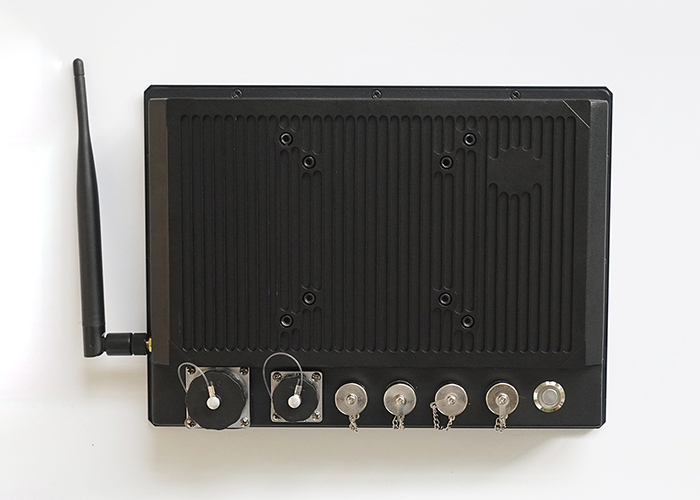

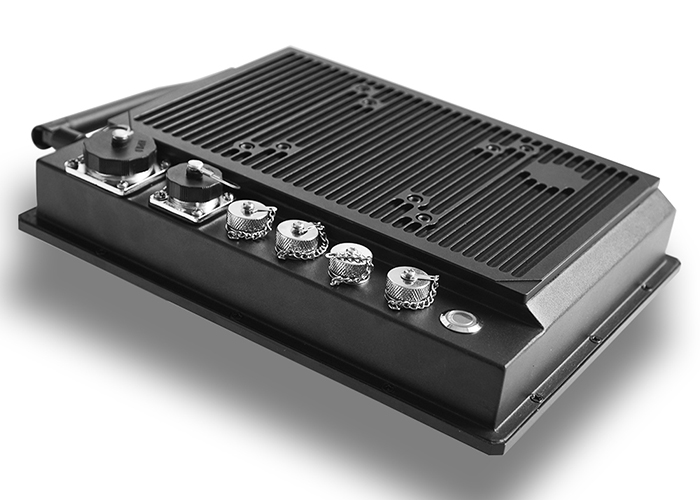

Pictures
