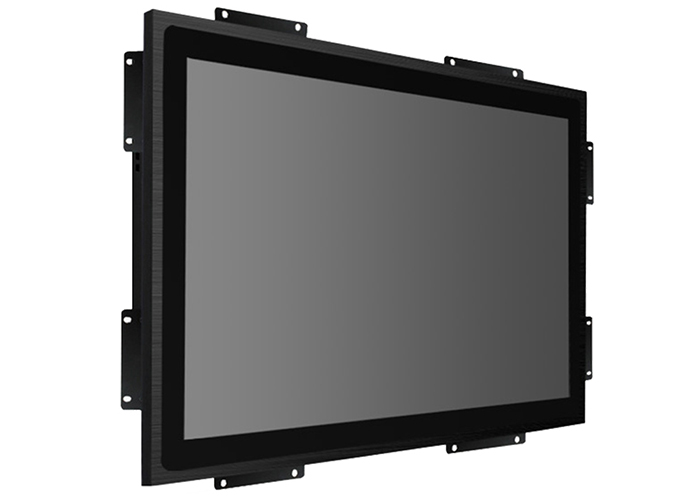

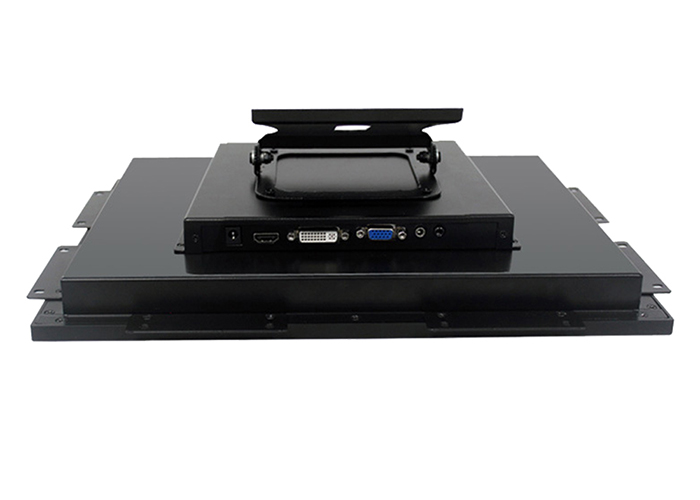

400 Nits Brightness Open Frame Touch Screen Monitor For Auto Pay Station

Name: 400 Nits Brightness Open Frame Touch Screen Monitor For Auto Pay Station
Brand: Shinho
Price: 1 USD

Buy cheap 400 Nits Brightness Open Frame Touch Screen Monitor For Auto Pay Station product

Brand Name : Shinho

Model Number : SL19

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Packaging Details : 1 piece/carton Gross Weight: 7kg Carton size: 63*45*19cm

Product Name : 19 inch open frame touch monitor

Panel Size : 19 inch

Resolution : 1440*900

Aspect ratio : 16:10

Contrast ratio : 1000:1

Brightness : 400 nits

Touch type : 5 wire resistive touch

Signal ports : VGA+DVI

IP grade : Front panel IP65 waterproof

Design : 10MM bezel,flat screen

Contact Now

19 Inch 16:10 Widescreen Open Frame Touchscreen Monitor for Auto Pay Station

Features

1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof .

2. 19 inch Industrial LCD panel,16:10 widescreen,1440*900 resolution.

3. With 5 wire resistive touch panel , stable, durable, anti-interference. (10 point capacitive touch ,IR touch optional)

4. High performance mainboard, 7x24 continuous operation.

5. 12V DC in. 24V DC optional.

6. VGA+DVI interface.

7. Suitable for commercial applications and industrial applications.

Applications

Auto Pay station

Self-service clothes recycling bins

Self-filling machine

self-service juicer

SCADA

HMI

Industrial automation

Customization service

1. 19 inch 4:3 1280*1024 resolution.

2. 1000 nits,sunlight readable.

3. Light sensor. adjust the brightness automatically.

4. Anti-glare function.

5. Full IP65 waterproof.

6. Full IP67 waterproof.

Specifications

Model:SL19
LCD panel
Panel size	19"
Resolution	1440*900
Aspect ratio	16:10
Support Color	16.7M colors
Brightness (cd/m²)	400
Contrast ratio	1000:1
View angle	80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type	5 wire resistive touch
Surface Hardness	7H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>35 million times
Touch options	(10 point capacitive touch, IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	optional
Audio in/out	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤35W
Enclosure
Material	Aluminum Alloy
Color	Black, white, Silver , color can be customized
VESA mounting	75×75mm/100×100mm
IP grade	front panel IP65 waterproof
Operating Environment
Temperature Range	operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	5.5kg
Gross weight	7kg
Product Dimension	47.4×31.8×5.2cm
Packing size	634519cm
Accessories	Power adapter, VGA cable, USB touch cable,embedded screws,user manual, warranty card
Other
Mounting	embedded mounting screws
	wall mounting brackets (optional)
	desk stand holder (optional)
Warranty	1 year warranty
Certificates	CE,FCC,RoHS


400 Nits Brightness Open Frame Touch Screen Monitor For Auto Pay Station

Drawing

400 Nits Brightness Open Frame Touch Screen Monitor For Auto Pay Station
