2 Points Infrared Touch Panel , IR Touch Screen Monitor 450cd/M² Luminance

Name: 2 Points Infrared Touch Panel IR Touch Screen Monitor 450cdM Luminance
Brand: Shinho
Price: 1 USD

Buy cheap 2 Points Infrared Touch Panel , IR Touch Screen Monitor 450cd/M² Luminance product

Brand Name : Shinho

Model Number : SL32

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, Paypal, L/C, D/A, D/P, Western Union, MoneyGram,

Product Name : Full HD Industrial Touch Monitor

Panel Size : 32"

Resolution : 1920*1080

Aspect ratio : 16:9

Touch type : 2-points infrared touch panel

Luminance : 450cd/m²

View angle : 89°/89°/89°/89° (R/L/U/D)

Signal ports : HDMI, VGA, DVI, Audio in/out

Contact Now

Full HD 1920*1080 Infrared Touch Screen Monitor 32 Inch With HDMI VGA DVI

Features

1. 32 inch Industrial LCD Panel

2. 1920*1080 Full HD resolution

3. Brightness 450cd/m²

4. Contrast ratio 1400:1

5. 2-points infrared touch panel ( 4-points , 6-points optional )

6. HDMI, VGA, DVI, Audio in/out

Advantages

1. Light weight, use 1.2mm thick high quality metal case, inner structure with reinforcement design

2. Industrial LCD panel, IPS full viewing angle, high nits, true color.

3. Multipoint infrared touch panel with waterproof and work well in direct sunlight.

4. Auto-adjust the brightness during the night, power saving.

5. High performance mainboard, 7x24 continuous operation.

6. Adopt HDMI 1.4 Digital decoding scheme, strong compatibility

Applications

hotel

POS system

Advertising

Ordering machine

self service kiosk

restaurant

Medical check machine

Cash register

Specification

Model:SL32
LCD panel
Panel size	32"
Resolution	1920*1080
Aspect ratio	16:9
Support Color	16.7M colors
Brightness	450cd/m² (1000cd/m² optional )
Contrast ratio	1400:1
View angle	89°/89°/89°/89° (R/L/U/D)
Touch panel
Touch panel type	2-points infrared touch panel ( 4-points , 6-points optional )
Tempered glass	Thickness: 3mm, customizable
	Mohs hardness: 6.5
	Luminousness: up to 95%
Interface	USB (RS232 optional)
Touch response time	5ms
Working Life	>50 million times
Touch options	PCAP touch optional
Signal Ports
HDMI	1×HDMI
VGA	1×VGA
DVI	1×DVI
Audio in/out	1×Audio in/out
AV	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V
Working voltage	DC 24V
Power consumption	≤50W
Enclosure
Material	High strength cold rolled steel
Color	Black, white, Silver , color can be customized
VESA mounting	200×200 mm
Operating Environment
Temperature Range	operating: -20 to 60°C, storage :-20 to 80°C
Relative humidity	operating: 10% to 90% , storage :5% to 90%
Packing Details
Net weight	18kg
Gross weight	20kg
Product Dimension	74.5×44×5.5cm
Packing size	99×64×18cm
Accessories	Power adapter,HDMI/USB cables
Other
Mounting (options)	1) provide wall brackets for wall-mounting, VESA 200×200mm
Mounting (options)	2) provide stable metal holder to support the monitor
Warranty	1 year warranty
Certificates	CE, FCC, RoHS

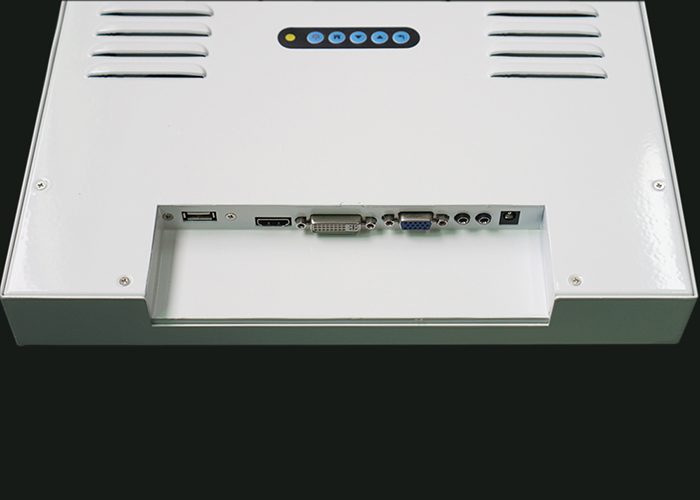

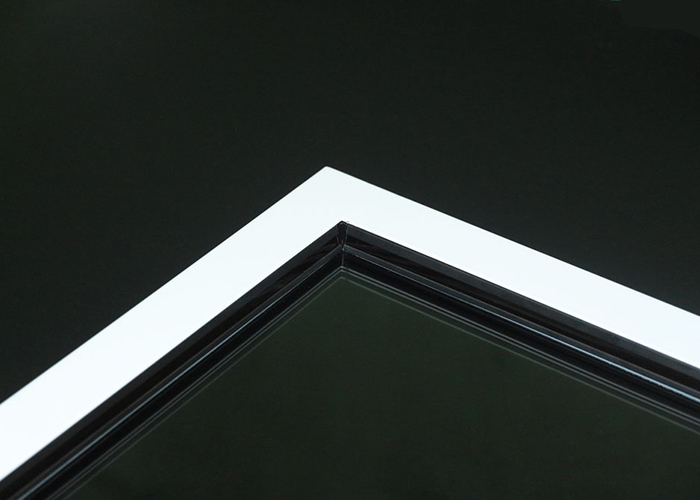

More Pictures

2 Points Infrared Touch Panel , IR Touch Screen Monitor 450cd/M² Luminance

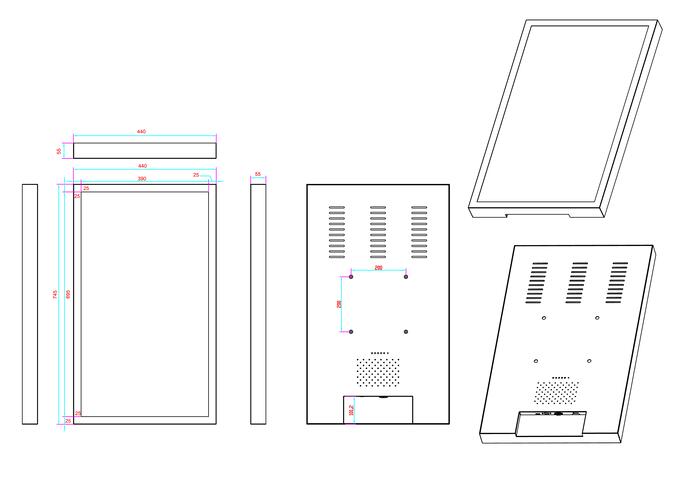

Drawing

2 Points Infrared Touch Panel , IR Touch Screen Monitor 450cd/M² Luminance
