15.6 Inch Widescreen Capacitive Touch Monitor 1920x1080 High Resolution

Product Categories
Shenzhen Shinho Electronic Technology Co., Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

15.6 Inch Widescreen Capacitive Touch Monitor 1920x1080 High Resolution

Brand Name : Shinho

Model Number : SL156

Certification : CE, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T,Paypal,L/C, D/A, D/P, Western Union, MoneyGram,

Panel size : 15.6''

Resolution : 1920*1080

Touchscreen Type : Project Capacitive Touch (10 points )

Working voltage : DC 12V-24V

Inputs : VGA , DVI , HDMI

IP grade : front panel IP65 waterproof and dustproof

Touch : USB for touch

Material : aluminium alloy

Contact Now

15.6 Inch Widescreen 1920*1080 High Resolution Capacitive Touch Monitor




Features



1. Panel size: 15.6 inch,1920*1080  high resolution.



2. Flat screen, with front IP65 waterproof rating.



3. Anti-jamming performance.reach EMI/EMC standard.


5. Project Capacitive Touch (10 points )


6. High performance mainboard, 7x24 continuous operation.


7. 12-24V wide voltage support.



8. 3MM untra bezel,ideal for embedded in machine.



9.  Provide Embedded screws,very easy to install the monitor in the machine.







15.6 inch Capacitive Touch Monitor Applications



Communications control



game cabinet



Self service vending machine



Entertainment



Signage Systems



sports lotteries



Customer Feedback Kiosk



apartment buildings









Customization Service



1. Resistive touch,infrared touch



2. 1000 nits,sunlight readable.



4. Anti-glare.



3. Auto dimming.



4. 24V power with Phoenix terminal.



5. Full IP65 waterproof monitor.



6.Show your logo when turn on the monitor or print the logo on the bezel of monitor.



7.COM RS232 for touch.



8. AV,BNC.



9. Size:7'',8'' ,10.1'',12'',13.3'',15'', 15.6'', 17'',17.3'' ,19'', 21.5'', 22'', 24'' ...







Specification



Model:SL156
LCD panel
Panel size 15.6"
Resolution 1920*1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400+
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points )
Surface Hardness 7H
Luminousness 90%
Touch Interface USB (RS232 optional)
Touch response time 2ms
Working Life >50 million times
Touch options (4 or 5 wires restive touch, IR touch optional)
Signal Ports
VGA 1×VGA
DVI 1×DVI
HDMI 1x HDMI
Audio in/out optional
OSD
OSD control Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS Windows XP , Windows /7/8/10 , Linux, Mac OS X, Android ect.
Power Supply
External Power Supply AC 100 - 240V , 50-60Hz
Working voltage DC 12V
Power consumption ≤35W
Enclosure
Material Aluminum Alloy
Color Black, white, Silver , color can be customized
VESA mounting 75×75mm/100×100mm
IP grade front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage :-20 to 80°C
Relative humidity operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight 2.5kg
Gross weight 3kg
Product Dimension 42×26.9×4.8cm
Packing size 47*44*18cm
Accessories Power adapter, VGA cable, USB touch cable,embedded screws,user manual,
warranty card
Other
Mounting embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificates CE,FCC,RoHS

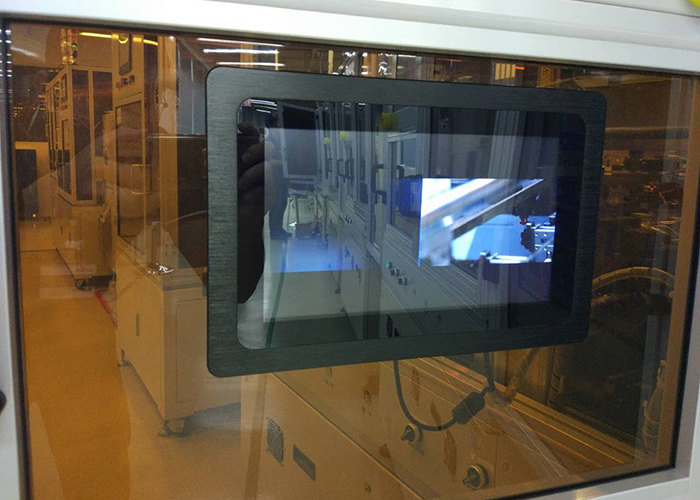

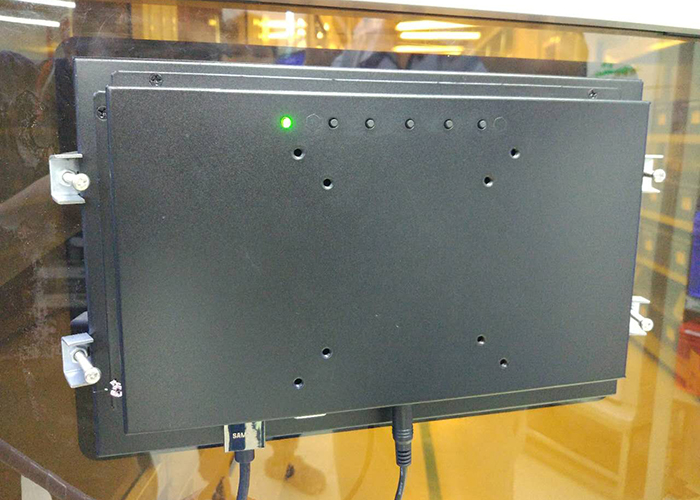

Installation Pictures



15.6 Inch Widescreen Capacitive Touch Monitor 1920x1080 High Resolution

15.6 Inch Widescreen Capacitive Touch Monitor 1920x1080 High Resolution



Drawing



15.6 Inch Widescreen Capacitive Touch Monitor 1920x1080 High Resolution
