Widescreen 15.6 Inch Industrial Touch Panel PC RFID QR Corde Scanner 3G Available

  • 1
  • 2

Brand Name : Shinho

Model Number : SC156

Certification : CE , FCC , RoHS

Place of Origin : Shenzhen , China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, Paypal, L/C, D/A , D/P, Western Union, MoneyGram

Product name : 15.6 Inch Touchscreen Panel PC With RFID

CPU : Intel® Celeron J1900 , quad core , 2.0GHz, fanless

RAM : 2G DDR3

Hard disk : 32G SSD

Touchscreen Type : Project Capacitive Touch (10 points)

Resolution : 1366*768

Aspect ratio : 16:9

IP Grade : Front panel IP65

Material : Aluminum Alloy

Built in module : RFID reader, Scanner (compatible with QR codes and barcodes), 3G module.

Contact Now

Widescreen 15.6 Inch Touchscreen Panel PC With RFID QR Corde Scanner And 3G




Features



1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof and dustproof.


2. Industrial LCD panel, wide viewing angle, high nits, true color.


3. Adopt multi-points PCAP touch panel, high sensitive and fast-response, cover with 2mm tempered glass for vandalproof.


4. High performance motherboard, 7x24 continuous operation.


5. Built in RFID reader, Scanner (compatible with QR codes and barcodes), 3G module.


6. With 4 RS232, 2 LAN.


7. Support wall mounting, embedded mounting, desk stand mouting etc.




Specification



Model:SC156
PC
CPU Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset Intel ValleyView SSA-CUnit
Memory 2G DDR3 (4G, 8G optional)
Hard Drive Capacity 32G SSD
Hard Drive Optional SSD: 64G, 128GB, 256GB
HDD: 500GB, 1TB
Graphics CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network 1xRealtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI
I/O Interface 3xUSB 2.0, 1xUSB 3.0, 4xCOM RS232, 4xRJ45
1xVGA/HDMI/Audio OUT/MIC IN/POWER DC
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
LCD panel
Panel size 15.6"
Resolution 1366*768
Aspect ratio 16:9
Support Color 16.7M colors
Brightness (cd/m²) 400+
Response time 5ms
Contrast ratio 1000:1
View angle 80°/80°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type Project Capacitive Touch (10 points)
Touch Interface USB (RS232 optional)
Touch response time 2ms
Luminousness 90%
Surface Hardness 7H
Working life >50 million times
Touch options (5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply AC 100-240V
Working voltage DC 12V
Power consumption ≤45W
Enclosure
Material Aluminum Alloy
Color Silver, Black, white, color can be customized
VESA mounting 75x75mm/100x100mm
IP grade Front panel IP65 waterproof
Operating Environment
Temperature Range operating: -10 to 60°C, storage: -20 to 80°C
Relative humidity 5%~95% @ 40° C, non-condensing
Vibration 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight 5kg
Gross weight 6.5kg
Product Dimension 51x25.9x5.87cm
Packing size 63x45x18cm
Accessories Power adapter, embedded screws, user manual, warranty card
Other
Customization Built in RFID reader
Scanner (compatible with QR codes and barcodes)
3G module
Mounting (options) embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty 1 year warranty
Certificate CE, FCC, RoHS

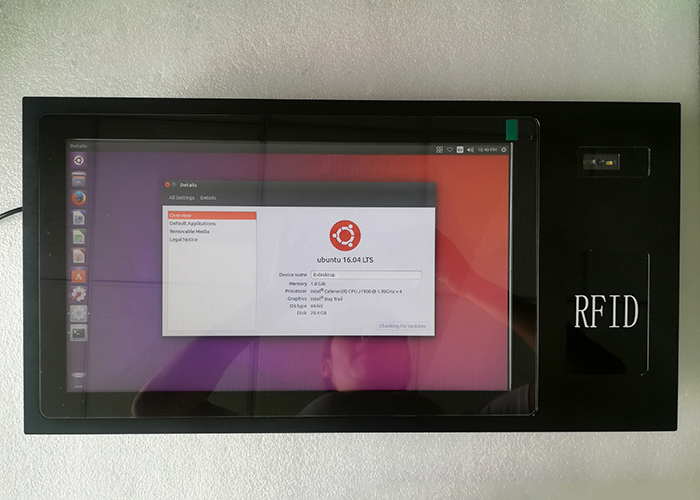

Pictures



Widescreen 15.6 Inch Industrial Touch Panel PC RFID QR Corde Scanner 3G Available

Widescreen 15.6 Inch Industrial Touch Panel PC RFID QR Corde Scanner 3G Available

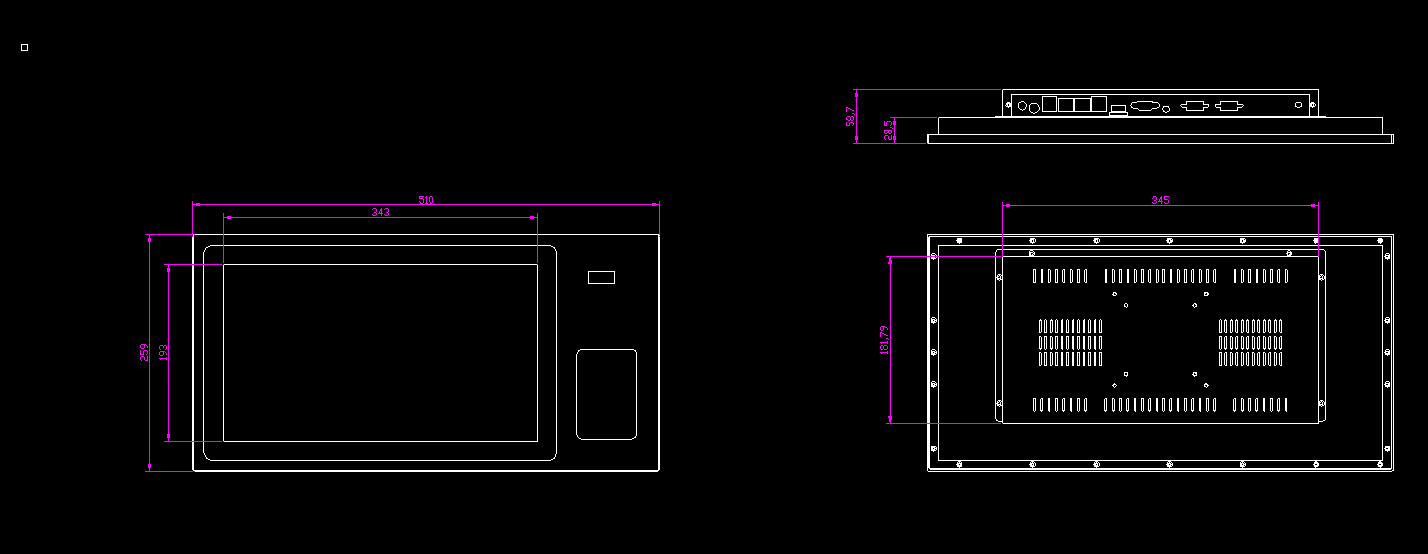

Drawing



Widescreen 15.6 Inch Industrial Touch Panel PC RFID QR Corde Scanner 3G Available



Applications

Visitors equipment



Industrial automation



Kiosk



Food & Baverage industry


Traffic Control System



Waste Water Management



vending machine



CNC automation equipment
