Sunlight Readable 10.1 Inch RK3288 Industrial Android Tablet

Brand Name : Sihovision

Model Number : SC101A

Certification : CE, FCC, RoHS

Place of Origin : China(Mainland)

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Product name : 10.1 inch Industrial Android Tablet Panel Pc

Products status : Stock

Material : Aluminum Alloy

Cpu : RK3288

Memory : 2GB

Storage : 8GB

Resolution : 1280*800

Brightness : 1000cd/m2

View Angle : 85°/85°/80°/80° (R/L/U/D)

Touch Type : 10 Points Capacitive Touch Or 5-Wire Resistive Touch

Type : Panel PC

IP Grade : Front IP65 Waterproof

Working voltage : 12-24V

Warranty : 12months

Contact Now

Sunlight Readable 10.1 inch RK3288 Processor Android Tablet Panel PC With Light Sensor for Auto Dimming

Features



1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, full viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
4. EETI waterproof solution, touch function can work well with drop water on the screen.
5.1000 nits, sunlight readable, with light sensor for auto dimming.
6. High performance mainboard, 7x24 continuous operation.
7. Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.
8. Support wall mounting, embedded mounting, desk stand mounting etc.

Specification

Model: SC101A
PC
CPU RK3288 Cortex-A17 quad core,1.8GHz
Memory 2GB DDR3
Storage 8GB EMMC
Decoding Resolution Support 1080P
Operation System Android 7.1
Play Modes Support timing, loop and spots etc. play modes
Network Support RJ45, WIFI, 3G, 4G, TD-LTE (optional)
Image Format JPG/BMP/GIF/TIFF/PNG
Video Format RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio Format MP3, WMA, AAC, etc.
RTC Real Time Clock YES
I/O Interfaces
USB 2xUSB (up to 5)
COM 1xCOM
LAN 1xRJ45, 10M/100M adaptive ethernet
HDMI 1xHDMI , support 1080p
DC 1xDC
Card Slot 1xSD
LCD panel
Panel size 10.1"
Resolution 1280*800
Aspect ratio 16:10
Support Color 16.7M colors
Brightness 1000 cd/m², sunlight readable
Brightness control Light sensor for auto dimming
Response time 30ms
Contrast ratio 800:1
View angle 85°/85°/80°/80° (R/L/U/D)
Touch panel
Touchscreen Type 10 point capacitive touch
Touch response time <2ms
Luminousness 90%
Surface Hardness 7H
Working Life >50 million times
Power Supply
External Power Supply AC 100 - 240V
Working voltage DC 12V 4A
Power consumption ≤25W
Enclosure
Appearance Flat panel
Material Aluminum alloy
Color Black, Silver
VESA mounting 75x75mm
IP grade Front IP65 waterproof
Operating Environment
Temperature Range operating: -20 to 70°C
Storage temperature -30°C to 80°C
Relative humidity 5-85% (non-condensing)
Vibration resistance 5-19Hz/1.0mm amplitude, 19-200Hz/1.0g acceleration
Impact resistance 10g acceleration, 11ms period
Packing Details
Net weight 3 kg
Gross weight 3.5 kg
Product dimension 29x20.9x4 cm
Packing size 43x38x18 cm
Accessories Power adapter, power cord, Open frame mounting kits, warranty card
Other
Customization (optional) 3G, 4G, Webcam, RFID reader etc. Optional
Warranty 1 year warranty

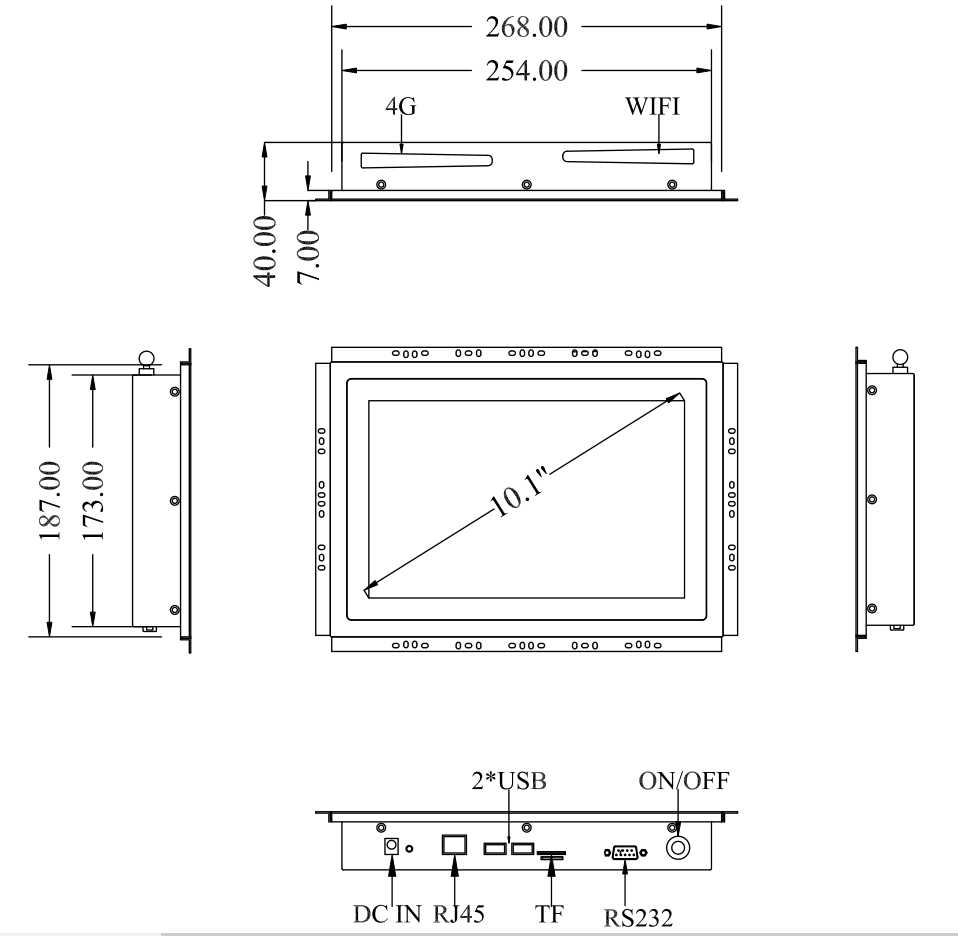

Drawing

Sunlight Readable 10.1 Inch RK3288 Industrial Android Tablet

Application
Smart City
Intelligent Education
Public Transportation
Commercial Terminals
Industrial automation area
